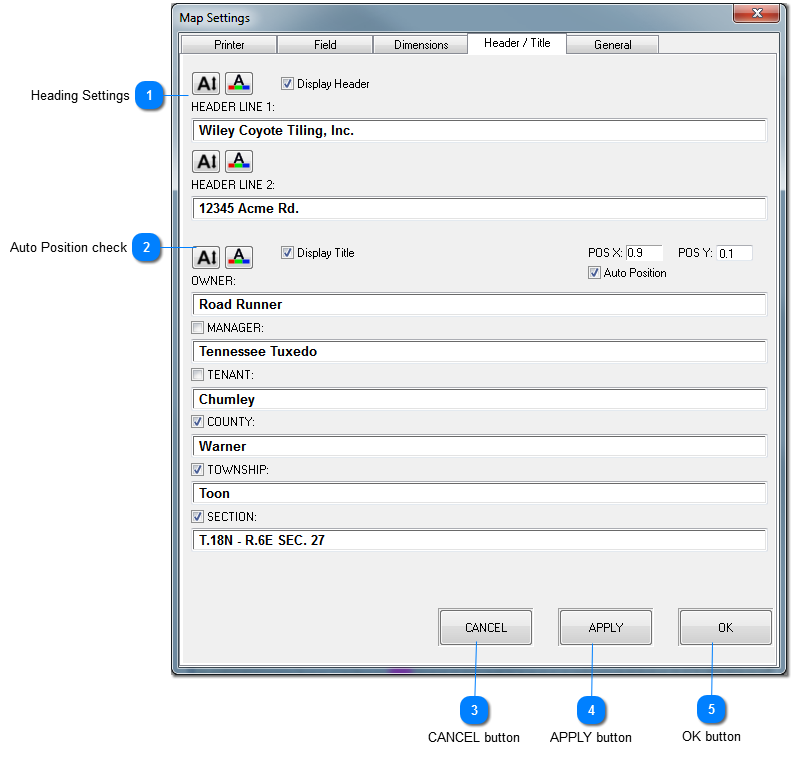

Opens color selection window for default font color of dimension text (if use layer color is unchecked)
Check to display the title block. By default, the owner is always displayed when this is checked. All other items are at the discretion of the user, and may be include/excluded by checking / unchecking the respective boxes above and the the left of each item.
Postion of the title block, 0, 0 being TOP, LEFT of page, from left margin / top margin. Here can be seen, that Auto Position is checked, and the title block is located .9" from the left margin, and .1" down from the top margin. To move, UNCHECK Auto Position, and input new x, y position.
The first time a print preview is opened for new file, information is automatically loaded as previously entered via the field notes window. This includes; Owner, Manager, Tenant, County, Township, & Section.
Opens font selection window for font type / size.
Opens color selection window for default font color of dimension text (if use layer color is unchecked)

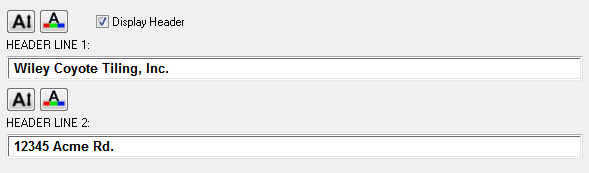

Check to display the header.

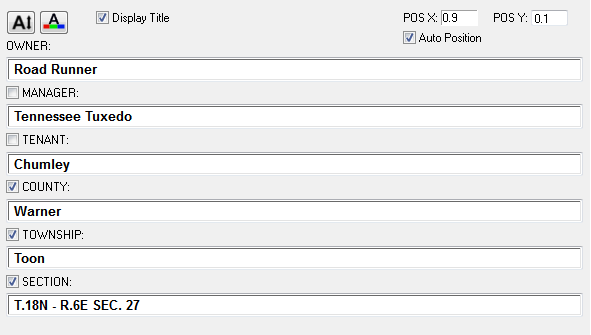

Check to display the title block. By default, the owner is always displayed when this is checked. All other items are at the discretion of the user, and may be include/excluded by checking / unchecking the respective boxes above and the the left of each item.
Postion of the title block, 0, 0 being TOP, LEFT of page, from left margin / top margin. Here can be seen, that Auto Position is checked, and the title block is located .9" from the left margin, and .1" down from the top margin. To move, UNCHECK Auto Position, and input new x, y position.
