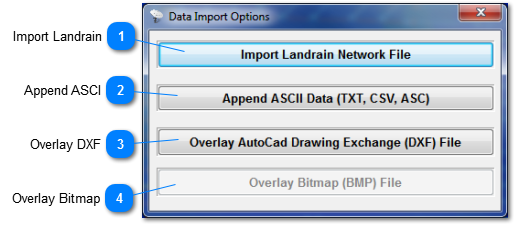

DATA IMPORT window
Import Landrain
Opens a Landrain
tm
network file (.NET) which for use with layout or machine control.
Top
Append ASCI
Opens the Append Data window to append txt data to the existing field.
Top
Overlay DXF
Opens and overlays onto the screen a AutoCad
tm
DXF file.
Top
Overlay Bitmap
Reserved for future use.
