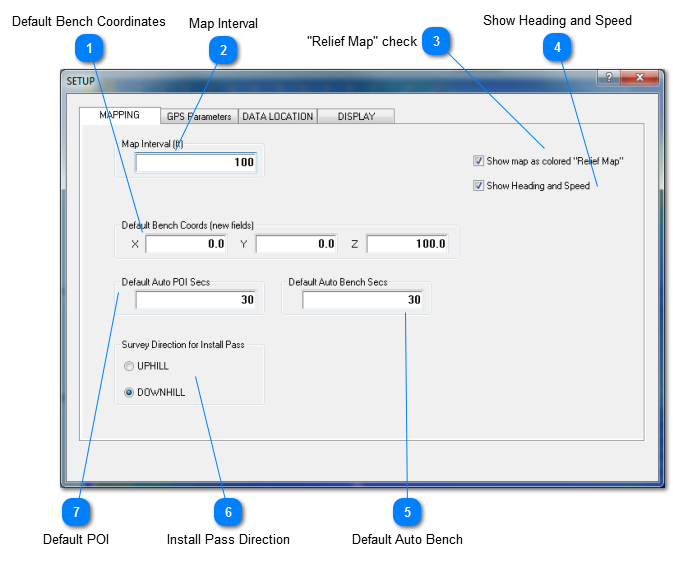

MAPPING Tab
Default Bench Coordinates
Used to define the user's preference for default benchmark coordinate in the the
Bench window
.
Top
Map Interval
The distance between mapped points. The distance from the previous point at which a new point is automatically recorded.
Top
"Relief Map" check
Option for displaying layers with the TOPO style as a tiled and colored "relief map" look or simply points denoted by +.
Top
Show Heading and Speed
Option for displaying heading and speed as reported by the GPS receiver.
Top
Default Auto Bench
The default timeout value to be used when "Auto Benching".
Top
Install Pass Direction
When surveying AWAY from the outlet, select UPHILL, conversely select DOWNHILL.
Tip: Survey install passes are only for use with machine control, and are not normally used for surveying or mapping purposes.
Top
Default POI
The default timeout value to be used when setting an "Auto POI".
