TOOLBOX window

TOOLBOX window

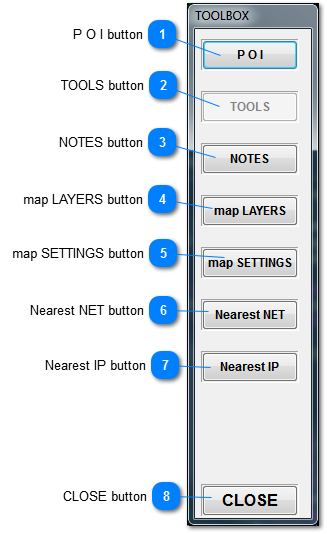

The Toolbox window allows key map settings to be changed or used without exiting the control screen,
along with specifically selecting nearest net or nearest IP profiles.
1

P O I button

1. P O I button     Allows the user to set a Point Of Interest (POI).  Note that AUTOPOI is disabled in "machine control" mode.
2

TOOLS button

2. TOOLS button     Reserved for future use.
3

NOTES button

3. NOTES button     Opens the notes window while in machine control.
4

map LAYERS button

4. map LAYERS button     Opens the layer window control, allowing the user to configure layers.  Note, in this mode the current layer cannot be changed!  For this select the layer from the map layer control.
5

map SETTINGS button

5. map SETTINGS button     Opens the map setup window.
6

Nearest NET button

6. Nearest NET button     Similar to the NEAREST button on the profile control, however, this specifically selects the nearest network file (Landrain), if loaded.  Even if an IP profile is closer.
7

Nearest IP button

7. Nearest IP button     Similar to the NEAREST button on the profile control, however, this specifically selects the nearest IP profile even if a  network file (Landrain) is loaded and closer.
8

CLOSE button

8. CLOSE button     Click to Exit or press the ESC key.  Also the ToolBox button, toggles display of this window on/off.

Tip: This window may be repositioned as desired, and the location will be remembered when reopened.
