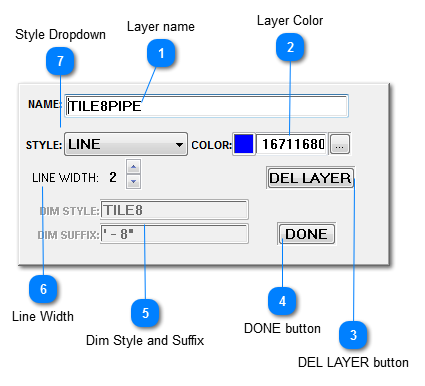

LAYER PROPERTIES window
Layer name
The layer name as specified in the
TLuser.txt
file or typed by the user. The name can be changed at any time.
Top
Layer Color
Color preview
Color number
Button to open window to select color.
Top
DEL LAYER button
Deletes the layer
AND ANY DATA ON THAT LAYER
.
Top
DONE button
Exit window, or use ESC key.
Top
Dim Style and Suffix
Style and Suffix can only be set in the
TLuser.txt
file. Style is for use when DXF's are exported. Suffix is used for the display of footage on the
Layer window
.
Top
Line Width
- Use ^ / v to increase / decrease.
Sets the line width 1 to 5 for layers with style "Line" only.
Top
Style Dropdown
Choose from TOPO, DOT, POINT, LINE, and EX_Tile (dashed).
Top
Deletes the layer AND ANY DATA ON THAT LAYER.
Exit window, or use ESC key.
- Use ^ / v to increase / decrease.
Choose from TOPO, DOT, POINT, LINE, and EX_Tile (dashed).
