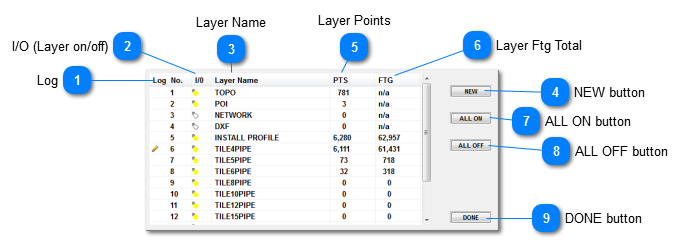

LAYER Window
When a new field is opened, the
TLuser.txt
file is read, and predefined layers using #LAYER directive are loaded.
Log
The current layer that is selected for logging (mapping). Click this column to change the current layer.
Top
I/O (Layer on/off)
Click to toggle layer display.
Top
Layer Name
Click on a layer name to open the layer property window.
Note: layers 1 - 5 have fixed properties, and cannot be changed by the user.
Top
NEW button
Click to create a new layer, and open the layer properties window. Up to 32 user defined layers can be created.
Top
Layer Points
The total number of data points on the layer.
Top
Layer Ftg Total
For layers with style "Line" or "EX_Tile", footage is totaled and displayed.
Top
ALL ON button
Click to turn all layers on.
Top
ALL OFF button
Click to turn all layers off, EXCEPT for the current layer.
Top
DONE button
Click to exit the layer window, or press ESC.
Top
